EASY FIT

CHAINED FLAT OVAL
UN-INSULATED
ACCESS DOORS

STAINLESS STEEL 304

Suitable for rectangular Duct

The AJS range of easy fit grade 304 stainless steel chained flat oval access doors are manufactured by ourselves in the UK and have been designed for both strength and to gain safe and easy access to all in-duct equipment for inspection, maintenance and duct cleaning purposes. As with our standard access door, a fully removable, double skinned panel with the additional feature of a factory fitted safety retaining chain (one end) attached to the outer door panel, leaving the other end of the chain to be fixed to the duct to assist in the prevention of injury and damage from the panel falling/being dropped whilst removing.

Size Options
  • Type A - 200mmx80mm
  • Type B - 250mmx150mm
  • Type C - 400mmx300mm
Specification / Features
  • Double skinned construction.
  • Manufactured from 0.8mm stainless steel. (grade 304 2b finish)
  • 6mm closed cell polyethylene gasket adhered to the inner panel sealing the duct internally.
  • A positive seal is achieved via 2 external thermo plastic, tri-star threaded (m10) hand wheels. Tightened onto press fitted internal fully threaded (m10) set bolts. (Zinc plated mild steel)
  • Conical stainless steel springs fitted between the inner and outer panel offers a sprung separation for ease of installation and removal.
  • Set bolt ends are pressed to purposely defect the thread ends, not allowing the access door to be completely disassembled, reducing the risk of the inner panel separating and falling into the duct, causing damage to other equipment.
  • Self adhesive disposable duct hole cut out template, complete with installation instructions package with each access door.
  • Optional - rubber edging strip (cut to size) for the duct hole rough edges, reducing the risk of personal injury when the access door is removed for duct cleaning and maintenance purposes.
Model Option
  • Factory fitted safety retaining chain.
Material Option
  • Stainless steel 304.
You are here: Home
Access Doors
Flat Oval Access Door
304 Stainless Steel - Chained
250mmW x 150mmH Chained Flat Oval Access Door 304 St/St
Print

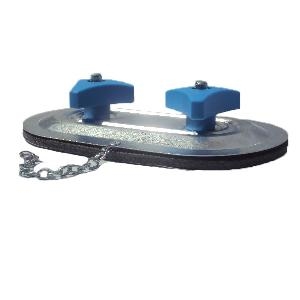

250mmW x 150mmH Chained Flat Oval Access Door 304 St-St

* Image for illustration purposes only.
250mmW x 150mmH - Type B - 304 Grade Stainless Steel 2B Finish - Un-insulated Easy Fit Pressed Flat Oval Access Door c/w Factory Fitted Safety Retaining Chain

Login For Price
(ex. VAT)

Weight: 0.6 kg
Availability: Ships in 24 hours
