VOLUME CONTROL DAMPER QUICK SEARCH

VOLUME CONTROL

DAMPERS

Suitable for Rectangular &
Spiral/Circular Duct

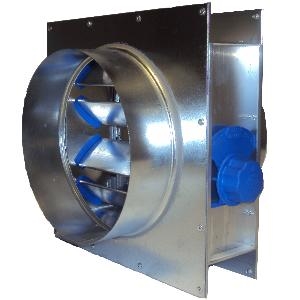

The AJS range of volume control dampers, have been designed specifically for ease of balancing airflow through ducting systems. The range offers both flanged and spigot / slip joint installation connections, a choice of  manual hand controls options with visual open/closed indication, (quick release plastic hand control or zinc cast quadrant hand control) and motorised operation control. (12mm Ø Zinc cast extended spindle)

Specification / Features

Certification
  •  BSRIA Quality approved pressure tested.
Range Includes
Specification / Features
  • Multi-leaf
  • Opposed 90º rotation aerofoil blades.
  • Slim-line casing - 75mm depth.
  • Visual indication - manual control.
  • Internal/None visible gear assembly.
  • Zinc cast – internally gear mounted spindle.
  • High impact - glass filled polypropylene gears.
  • Single Blade option.
  • Iris type option.
Operation Options
  • Manual – Plastic quick release hand control
  • Manual – Zinc cast quadrant hand control.
  • Motorised – 12mm Ø Zinc Cast Spindle.
Duct Connection type
  • Flanged 35mm.
  • Galvanised steel slip joint / spigot.
Material
  • Extruded aluminium casing.
  • Extruded aluminium aerofoil blades.
You are here: Home
→
Dampers
→
Multi-Leaf Volume Control Dampers
You need to upgrade your Flash Player This is replaced by the Flash content. Place your alternate content here and users without the Flash plugin or with Javascript turned off will see this. Content here allows you to leave out noscript tags. Include a link to bypass the detection if you wish.

Specific Product Search



1. Select the category:







VCD-S - CIRCULAR VCD - (Circular Range)
VCD-S - RECTANGULAR VCD (Rectangular Range)
