Suitable for Rectangular Duct

The AJS range of 25mm deep, 304 grade stainless steel - (Cam Operated) hinged access doors. Manufactured by ourselves in the UK, offering a quick and simple solution to gain easy and safe access to all in-duct equipment for inspection, maintenance and duct cleaning purposes. As with our standard access door, removable double skinned panel and radius knock over tabbed sub-frame with the feature of a factory fitted full length piano hinge, attached to both the door panel and sub frame to assist in the additional prevention of injury and damage from the panel falling/being dropped whilst removing.
Specification / Features
  • Double skinned construction.
  • Manufactured from 0.8mm 304 grade stainless steel. (2b finish)
  • Encapsulating 25mm 60 kg/m2 Rockwool Insulation.
  • 6mm closed cell polyethylene gasket adhered to both inner & outer sub-frame, reducing the risk of air leakage.
  • A positive seal is achieved via 1.2mm stainless steel progressive action cam lock fasteners
  • Radius knock-over tabbed sub frame, reducing the risk of personal injury when handling.
  • Factory fitted full length piano hinge -1.5” open, bright zinc plated mild steel (as standard) attached to both door panel & sub-frame.
  • Stainless steel semi tubular rivets used to fix cam lock, hinge & frame assembly.
  •  BSRIA Quality approved pressure tested.
Model Option
  • 25mm Deep.
  • Factory fitted hinge.
Material Option
  • 304 Stainless steel.

You are here: Home
Access Doors
Tabbed Access Door
Hinged Access Doors
304 Stainless Steel - 25mm
1100mm W x 200mm H x 25mm Hinged Access Door 304 SS
1100mm W x 200mm H x 25mm Hinged Access Door 304 SS

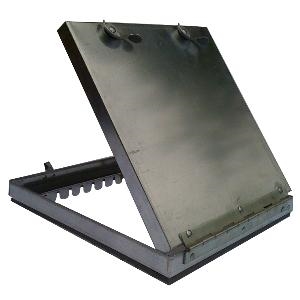

* Image for illustration purposes only.
1100mm W x 200mm H x 25mm Deep 304 Grade Stainless Steel 2B Finish Insulated Tabbed Access Door c/w Factory Fitted Full Length Piano Hinge

Login For Price
(ex. VAT)

Weight: 7.61 kg
Availability: Ships in 24 hours
