TABBED TYPE

HINGED ACCESS DOORS
CAM OPERATED
INSULATED

Suitable for Rectangular Duct

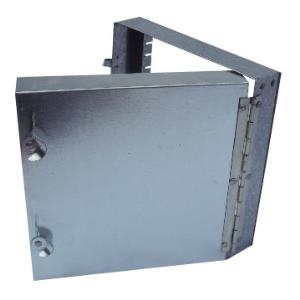

The AJS range of (Cam Operated) hinged access doors manufactured by ourselves in the UK, offering a quick and simple solution to gain easy and safe access to all in-duct equipment for inspection, maintenance and duct cleaning purposes. As with our standard access door, removable double skinned panel and radius knock over tabbed sub-frame with the feature of a factory fitted full length piano hinge, attached to both the door panel and sub frame to assist in the additional prevention of injury and damage from the panel falling/being dropped whilst removing.

Specification / Features

Double skinned construction.
Manufactured from 0.8mm galvanised mild steel (as standard).
Encapsulating 25mm 60 kg/m2 Rockwool Insulation.
6mm closed cell polyethylene gasket adhered to both inner & outer sub-frame, reducing the risk of air leakage.
A positive seal is achieved via 1.2mm progressive action cam lock fasteners.
Radius knock-over tabs, reducing the risk of personal injury when handling.
Factory fitted full length piano hinge (1.5” open, bright zinc plated mild steel) attached to both door panel & sub-frame.

Certification

BSRIA - Quality approved pressure tested.

Model Options

25mm Deep.
50mm Deep.
Factory fitted hinge.

Material Options

Galvanised steel.
304 Stainless steel.
316 Stainless steel.
