ACCESS DOOR QUICK SEARCH

TABBED TYPE

CHAINED ACCESS DOORS
CAM OPERATED
INSULATED

Suitable for Rectangular Duct

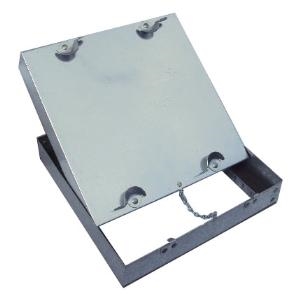

The AJS range of (Cam Operated) chained access doors, manufactured by ourselves in the UK, offering a quick and simple solution to gain easy and safe access to all in-duct equipment for inspection, maintenance and duct cleaning purposes. As with our standard access door, a fully removable, double skinned panel and radius knock over tabbed sub-frame, with the additional feature of a factory fitted safety retaining chain attached to both the door panel and sub frame, to assist in the prevention of injury and damage from the panel falling/being dropped whilst removing.

Specification / Features

Double skinned construction.
Manufactured from 0.8mm galvanised mild steel (as standard).
Encapsulating 25mm 60 kg/m2 Rockwool Insulation.
6mm closed cell polyethylene gasket adhered to both inner & outer sub-frame, reducing the risk of air leakage.
A positive seal is achieved via 1.2mm progressive action cam lock fasteners.
Radius knock-over tabs, reducing the risk of personal injury when handling.
Factory fitted safety retaining chain (welded oval link, bright zinc plated mild steel) attached to both door panel & sub-frame.

Certification

BSRIA - Quality approved pressure tested.

Available Options

25mm Deep.
50mm Deep.
Factory fitted safety retaining chain.

Material Options

Galvanised steel.
304 Stainless steel.
316 Stainless steel.

You are here: Home

→

Access Doors

→

Tabbed Access Door

→

Chained Access Doors

You need to upgrade your Flash Player This is replaced by the Flash content. Place your alternate content here and users without the Flash plugin or with Javascript turned off will see this. Content here allows you to leave out noscript tags. Include a link to bypass the detection if you wish.

Specific Product Search

1. Select the category:

Galvanised - 25mm

304 Stainless Steel - 25mm

316 Stainless Steel - 25mm

Galvanised - 50mm

304 Stainless Steel - 50mm

316 Stainless Steel - 50mm


	PLEASE NOTE: DUE TO EXTREME RAW MATERIALS SHORTAGES, TOGETHER WITH HUGH COST INCREASES , AJS ARE NO LONGER ABLE TO SUPPLY GOODS AT THE PRICES SHOWN ON THIS SITE. AJS ADVISE THAT ALL CUSTOMERS REQUEST A CURRENT QUOTATION IN ADVANCE, AS COST ARE CHAINGING ON A WEEKLY BASIS. NO ORDERS WILL BE PROCESSED AT THE CURRENT PRICE SHOWN.
