ACCESS DOOR QUICK SEARCH

TABBED TYPE

STANDARD ACCESS DOORS
CAM OPERATED
INSULATED

Suitable for Rectangular Duct

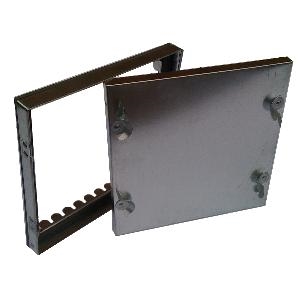

The AJS range of 25mm deep standard - (Cam Operated) access doors, manufactured by ourselves in the UK, offers a quick and simple solution to gain easy and safe access to all in-duct equipment for inspection, maintenance and duct cleaning purposes. Complete with a fully removable double skin panel and radius knock over tabbed sub-frame.

Specification / Features
  • Double skinned construction.
  • Manufacture from 0.8mm galvanised mild steel (as standard).
  • Encapsulating 25mm 60 kg/m2 Rockwool Insulation.
  • 6mm closed cell polyethylene gasket adhered to both inner & outer sub-frame, reducing the risk of air leakage.
  • A positive seal is achieved via 1.2mm progressive action cam lock fasteners.
  • Radius knock-over tabs, reducing the risk of personal injury when handling.
Certification
  • BSRIA Quality approved pressure tested.
Available Options
  • 25mm Deep.
  • 50mm Deep.
Material Options
  • Galvanised steel.
  • 304 Stainless steel.
  • 316 Stainless steel.
You are here: Home
→
Access Doors
→
Tabbed Access Door
→
Standard Access Doors
You need to upgrade your Flash Player This is replaced by the Flash content. Place your alternate content here and users without the Flash plugin or with Javascript turned off will see this. Content here allows you to leave out noscript tags. Include a link to bypass the detection if you wish.

Specific Product Search



1. Select the category:

Galvanised Steel - 25mm Galvanised Steel - 25mm
304 Stainless Steel - 25mm 304 Stainless Steel - 25mm
316 Stainless Steel - 25mm 316 Stainless Steel - 25mm
Galvanised Steel - 50mm Galvanised Steel - 50mm
304 Stainless Steel - 50mm 304 Stainless Steel - 50mm
316 Stainless Steel - 50mm 316 Stainless Steel - 50mm
